UL1199 PTFE Wire 600V Silver-plated Copper 200°C High Temperature Resistance for Sensors and Military Industry

Product Categories
Shenzhen Mysun Insulation Materials Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

UL1199 PTFE Wire 600V Silver-plated Copper 200°C High Temperature Resistance for Sensors and Military Industry

Insulation Material : PTFE

Place of Origin : Guangdong, China

Certification : UL RoHS

Max Temperature : 200C

Conductor Type : tinned copper

Conductor Material : Tinned Copper wire

Conductor Construction : 7/0.10mm (30 AWG), 7/0.12mm (28 AWG), 7/0.16mm (26 AWG), 7/0.20mm (24 AWG), 19/0.15mm (22 AWG), 19/0.19mm (20 AWG), 19/0.235mm (18 AWG), 19/0.30mm (16 AWG), 19/0.37mm (14 AWG), 19/0.47mm (12 AWG), 37/0.43mm (10 AWG)

AWG Range : 0-30 AWG

Brand Name : MYSUN

Jacket : PTFE

Conductor Resistance : 381 Ω/KM (30 AWG), 239 Ω/KM (28 AWG), 150 Ω/KM (26 AWG), 94.2 Ω/KM (24 AWG), 59.4 Ω/KM (22 AWG), 36.7 Ω/KM (20 AWG), 23.2 Ω/KM (18 AWG), 14.6 Ω/KM (16 AWG), 8.96 Ω/KM (14 AWG), 5.64 Ω/KM (12 AWG), 3.55 Ω/KM (10 AWG)

Unit Length : 610M/2000FT (30-24 AWG), 305M/1000FT (22-12 AWG)

Overall Diameter : 1.32mm (30 AWG), 1.38mm (28 AWG), 1.50mm (26 AWG), 1.62mm (24 AWG), 1.77mm (22 AWG), 1.95mm (20 AWG), 2.19mm (18 AWG), 2.52mm (16 AWG), 2.87mm (14 AWG), 3.37mm (12 AWG), 4.02mm (10 AWG)

MOQ : 3050

Color Options : Optional

Diameter : 12 AWG, 10 AWG, 8 AWG, 24 AWG, 20 AWG, 22 AWG, 14 AWG, 6 AWG, 16 AWG, 18 AWG, 2 AWG, 4 AWG, 1 AWG

Insulation Thickness : 0.510mm (30-16 AWG), 0.800mm (8-2 AWG), 1.200mm (1-4/0 AWG)

Rated Voltage : 600V

Nominal Thickness : 0.510mm (30-16 AWG), 0.800mm (8-2 AWG), 1.200mm (1-4/0 AWG)

Model Number : UL 1199

Contact Now

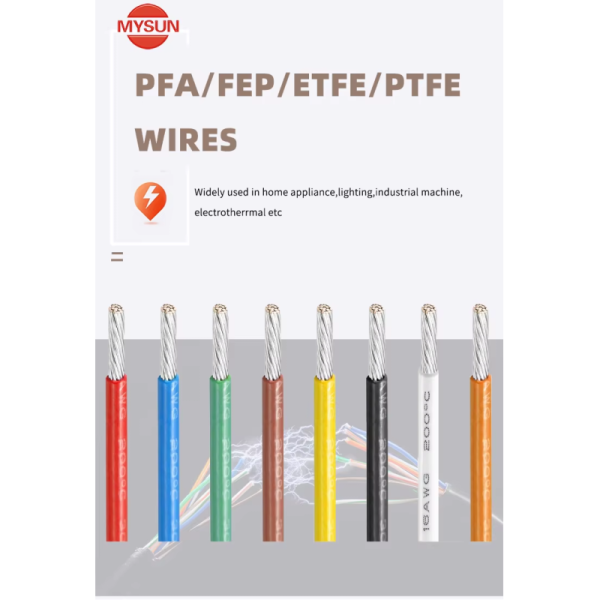

UL1199 PTFE High Temperature Wire
Silver-plated Copper Conductor, 0-30 AWG, 600V, 200°C Rating - Ideal for Sensor Applications
Supplies Fortune 500 Companies - Top High Temperature Wire Supplier in China
UL1199 PTFE Wire 600V Silver-plated Copper 200°C High Temperature Resistance for Sensors and Military Industry UL1199 PTFE Wire 600V Silver-plated Copper 200°C High Temperature Resistance for Sensors and Military Industry
Technical Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
307/0.100.300.5101.32381610/2000
287/0.120.360.5101.38239610/2000
267/0.160.480.5101.50150610/2000
247/0.200.600.5101.6294.2610/2000
2219/0.150.750.5101.7759.4305/1000
2019/0.190.930.5101.9536.7305/1000
1819/0.2351.170.5102.1923.2305/1000
1619/0.301.500.5102.5214.6305/1000
1419/0.371.850.5102.878.96305/1000
1219/0.472.350.5103.375.64305/1000
1037/0.433.000.5104.023.55305/1000
837/0.543.780.8005.382.23
737/0.604.200.8005.801.77
637/0.684.760.8006.361.41
537/0.765.320.8006.921.12
437/0.866.020.8007.620.89
37/2.216.630.8008.230.71
27/2.487.440.8009.040.56
17/2.788.341.20010.740.4268
07/3.209.601.20012.000.3367
2/07/3.5710.711.20013.110.267
3/07/3.9411.821.20014.220.2119
4/07/4.4213.261.20015.660.168
Contact us to get the best quote
Our Products
UL1199 PTFE Wire 600V Silver-plated Copper 200°C High Temperature Resistance for Sensors and Military Industry
Applications
UL1199 PTFE Wire 600V Silver-plated Copper 200°C High Temperature Resistance for Sensors and Military Industry
Company Profile
UL1199 PTFE Wire 600V Silver-plated Copper 200°C High Temperature Resistance for Sensors and Military Industry UL1199 PTFE Wire 600V Silver-plated Copper 200°C High Temperature Resistance for Sensors and Military Industry
Our Overseas Clients
UL1199 PTFE Wire 600V Silver-plated Copper 200°C High Temperature Resistance for Sensors and Military Industry
Exhibition
UL1199 PTFE Wire 600V Silver-plated Copper 200°C High Temperature Resistance for Sensors and Military Industry
Certifications
UL1199 PTFE Wire 600V Silver-plated Copper 200°C High Temperature Resistance for Sensors and Military Industry
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Headquartered in Shenzhen, Guangdong, China with production bases in Dongguan and Jingzhou.
  • What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
